YOUR LOCATION：HOME > HEAVY DUTY SNATCH BLOCKS

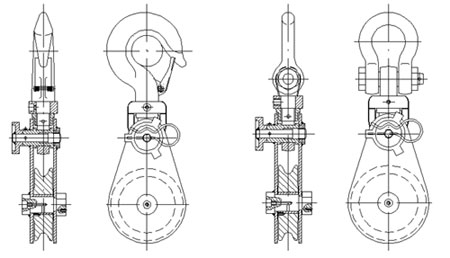

HEAVY DUTY SNATCH BLOCKS
八、重型開口滑車 HEAVY DUTY SNATCH BLOCKS
| 滑輪直徑 | 適用鋼索直徑 | 安全工作負荷 | 試驗負荷 |
| Sheave Dia. | Wire Dia. | S.W.L | P.L |
| mm（INCH） | TON | ||
| 76 (3?) | 7-9 | 2 | 4 |
| 114 (4-1/2?) | 10-12 | 4 | 8 |
| 152 (6?) | 20-22 | 8 | 16 |
| 203 (8?) | 20-22 | 8 | 16 |
| 254 (10?) | 20-22 | 8 | 16 |
| 305 (12?) | 20-22 | 8 | 16 |
| 357 (14?) | 20-22 | 8 | 16 |
| 152 (6?) | 20-22 | 12 | 24 |
| 406 (16?) | 20-22 | 12 | 24 |
| 458 (18?) | 24-26 | 15 | 30 |
| 203 (8?) | 28-30 | 22 | 44 |
| 406 (16?) | 28-30 | 22 | 44 |
| 305 (12?) | 32 | 30 | 60 |
| 458 (18?) | 32 | 30 | 60 |
